High-Quality LED Backup Lights
Primelux led tractor lights use high-quality OSRAM chips and a clear PC lens to emit 6000k pure white light, effectively illuminating dark roads at night. They are well-suited for construction, forestry, agriculture, and off-road activities.
Durable 12V Light Mini Bar

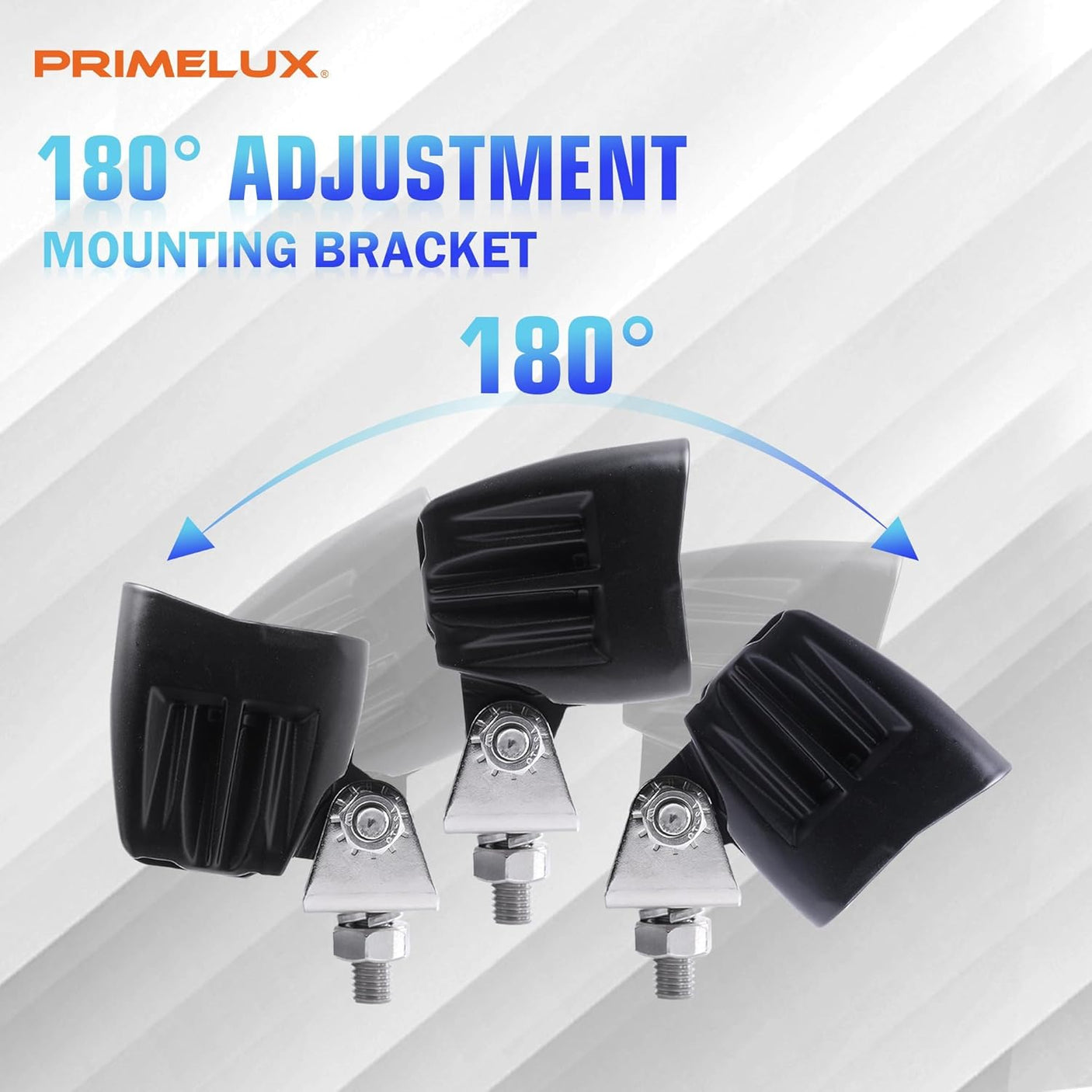

This LED work light bar features a simple and improved design with a durable aluminum housing and stainless steel mounting bracket, allowing for easy adjustments to achieve the optimal lighting effect. The wiring is protected by a rubber ring, enhancing the durability of the work light.

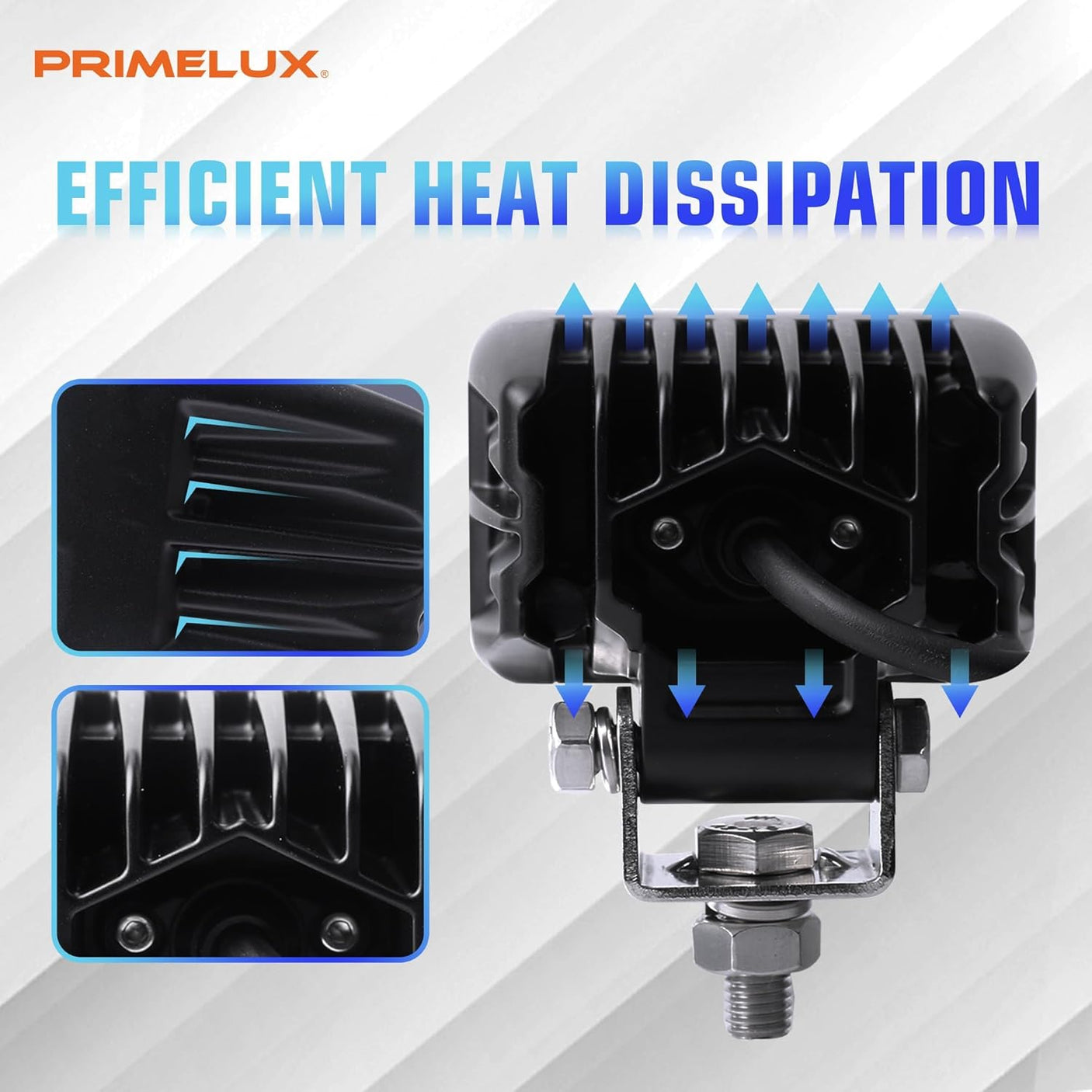

Effective Heat Dissipation
The light is constructed with an aluminum profile and thick heat sink housing, which maximizes the cooling surface area and accelerates heat dissipation, extending the lifespan to over 50,000 hours.

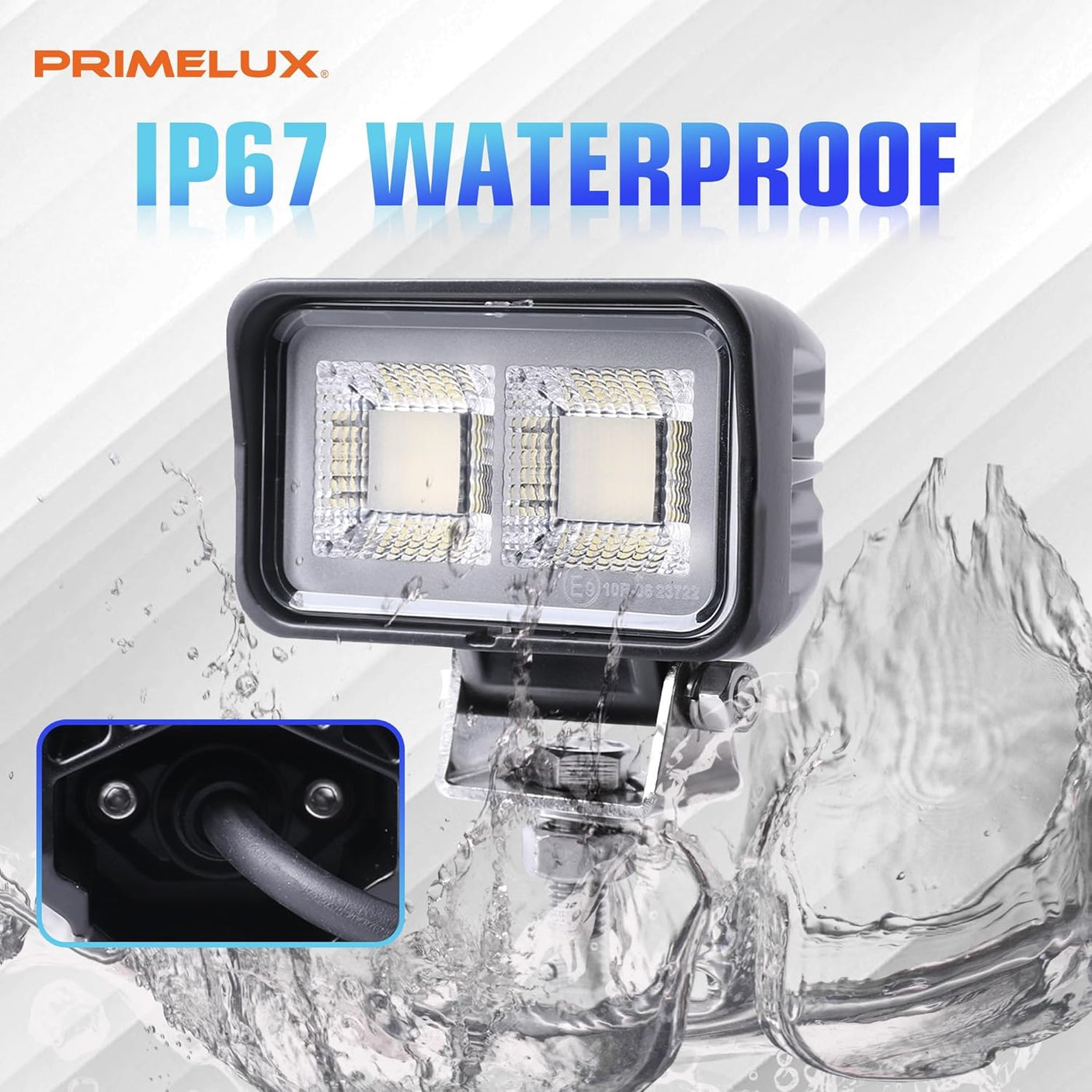

Effective Protection
With an IP67 waterproof rating, the light features a waterproof die-casting aluminum alloy shell and advanced sealing technology, effectively protecting against water and dust and ensuring the safety of drivers.
Wide Application
The LED cube lights are compatible with all 12-24V DC vehicles and can serve as auxiliary, fog, driving, head, ditch, tail, work, off-road, reverse, backup, and more. They are suitable for a variety of vehicles including trucks, jeeps, wranglers, pickups, motorcycles, tractors, ATVs, UTVs, golf carts, boats, and cars.
-
Model NamePX1140
-
Number of Items2
-
Specs forSingle Item
-
LED Chips40 x 1W OSRAM LED
-
Operating Voltage10-30V DC (12/24V DC)
-
Actual Power31.83W
-
Current Draw2.65@12V, 1.32@24V
-
Beam PatternFlood Beam
-
Effective Lumen2866lm
-
Emitting ColorWhite
-
Color Temperature5700K
-
Cable2-Core Sheathed Cable
-
ConnectorNo Connector
-
PigtailNo Pigtail
-
Housing MaterialHigh Pressure Die-Cast Aluminium Alloy
-
Housing ColorBlack
-
Lens MaterialVirtually Unbreakable & UV-Resistant Polycarbonate Lens
-
Lens ColorClear
-
Bracket MaterialStainless Steel 304
-
Bracket ColorSilvery-gray
-
Mounting TypePedestal Mount
-
Operating Temperature-30℃ ~ +65℃ (-22°F ~ +149°F)
-
Dimensions (LxWxH)3.4" x 2.4" x 2.2"
-
Height Including Bracket2.9"
-
Ingress ProtectionIP68, IP69K
-
EMCECE R10, EN55015
-
ComplianceCE, RoHS, ECE R10

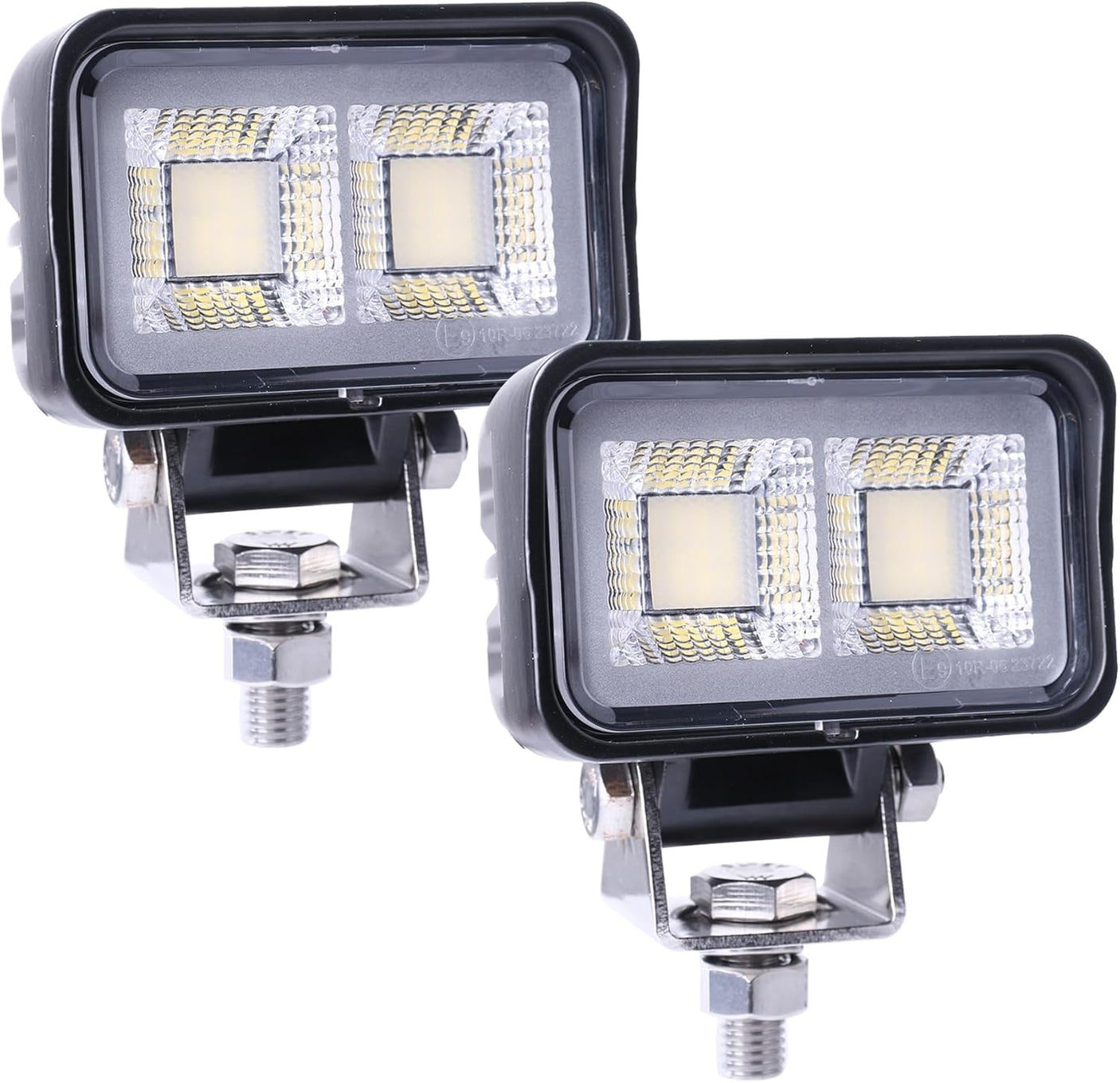

- 2 x Primelux LED work lights

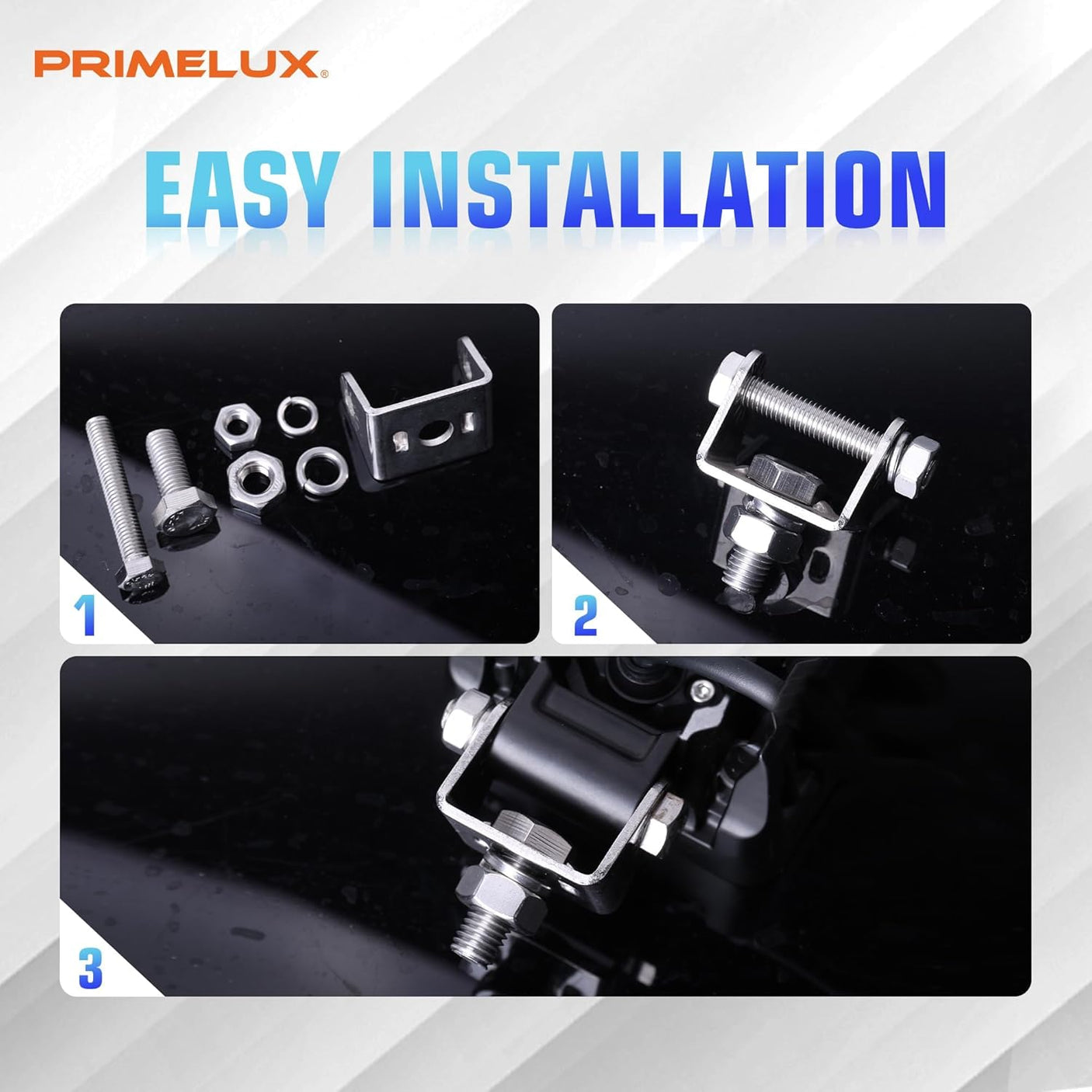

- Mounting bottom brackets
- Mounting bolts & nuts
