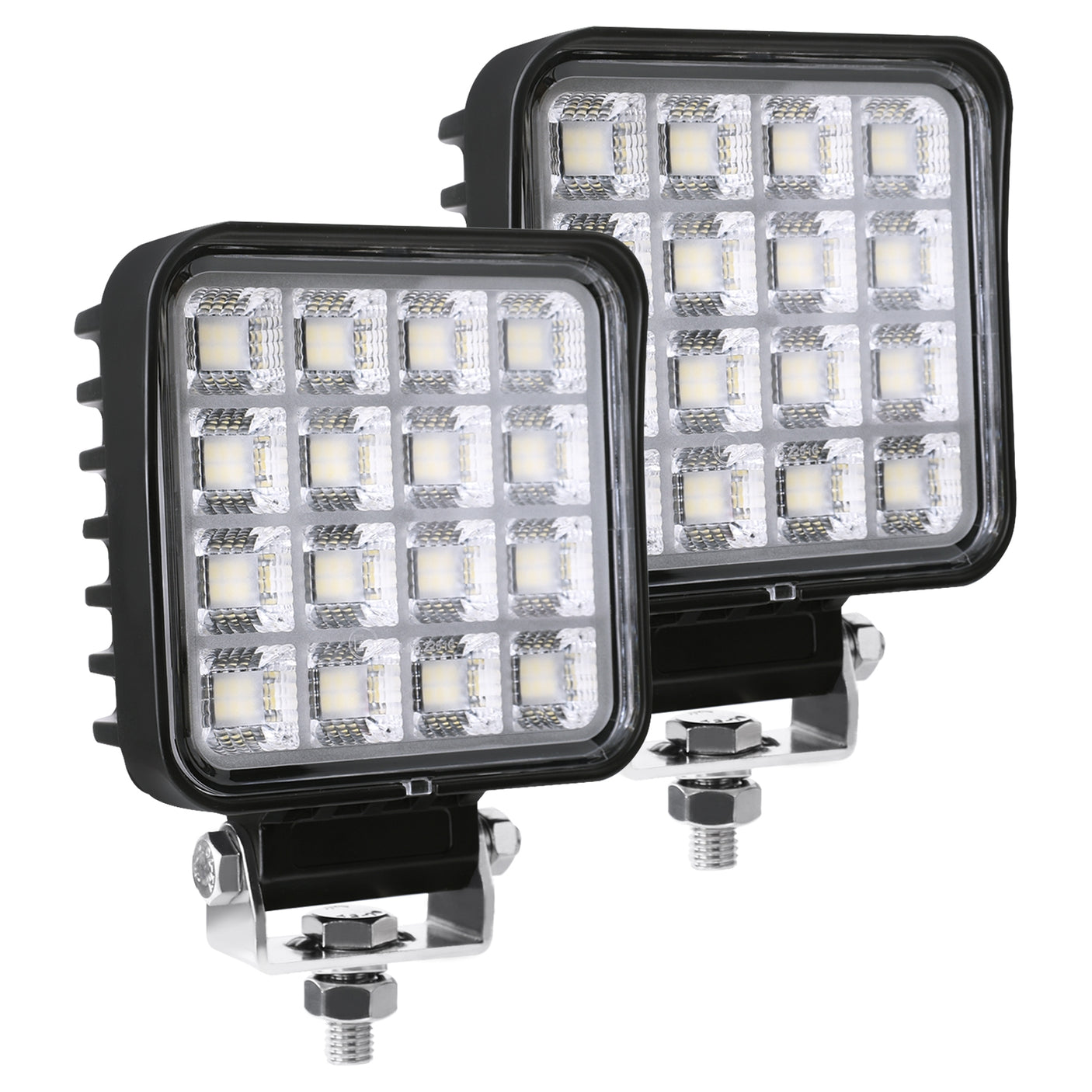

Super High Brightness
This square 12v led light uses advanced OSRAM LED chips to provide abundant brightness for clear visibility. Anti-radio interference ability and professional cooling design enhance a long lifespan of up to 50000 hours.
Durable and Adjustable Stainless Steel

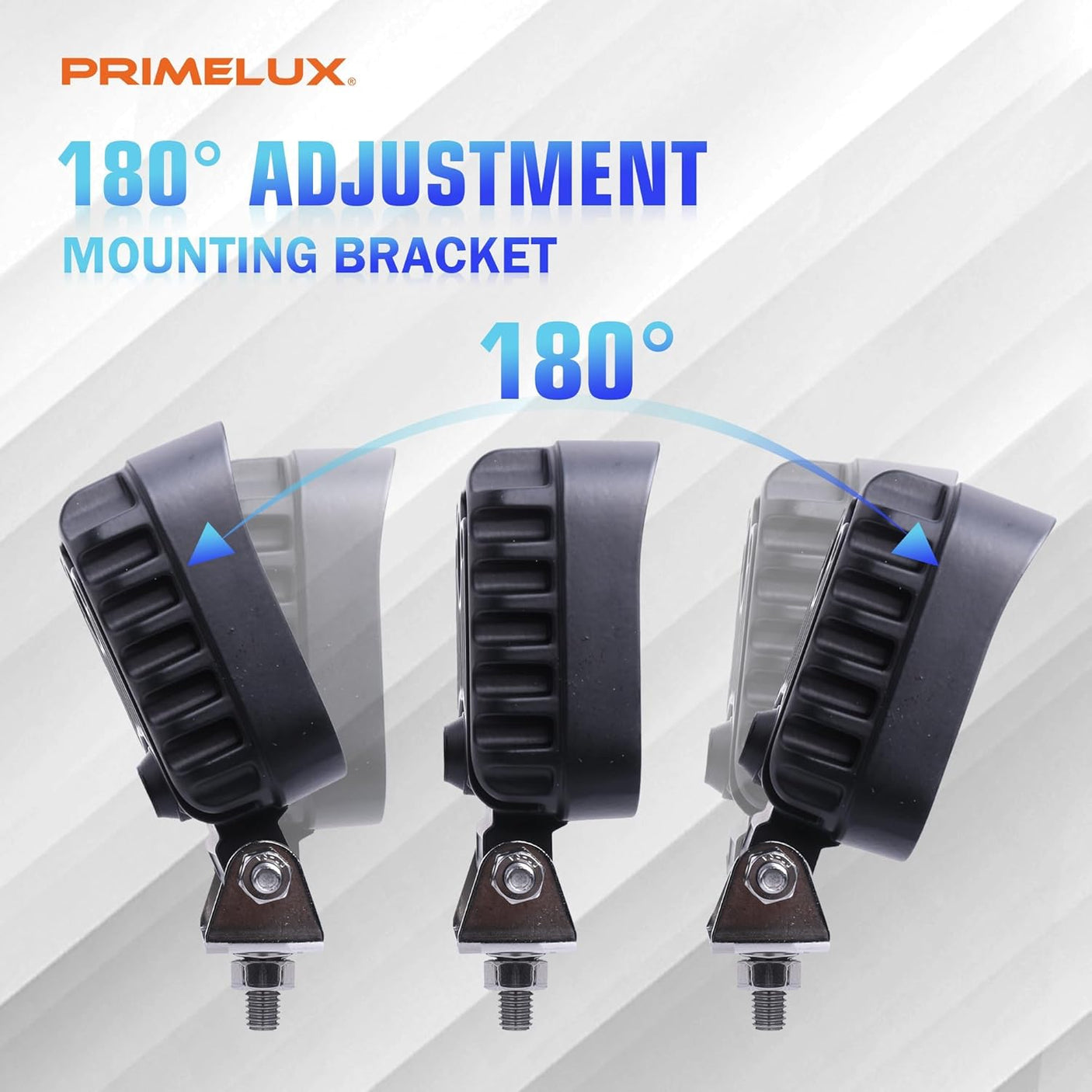

This tractor lights bar has aluminum housing against rust and corrosion, an impact-resistant PC lens, and an adjustable and slidable stainless steel bottom mounting bracket, which makes it easier to change the direction of the beam, the wire uses a rubber ring protection design, and make this work light more durable.
180° Flood Beam Angle
This bumper light with a 180°illumination range gives out abundant brightness for clear visibility which greatly increases safety for your night riding and driving in rainy foggy weather.

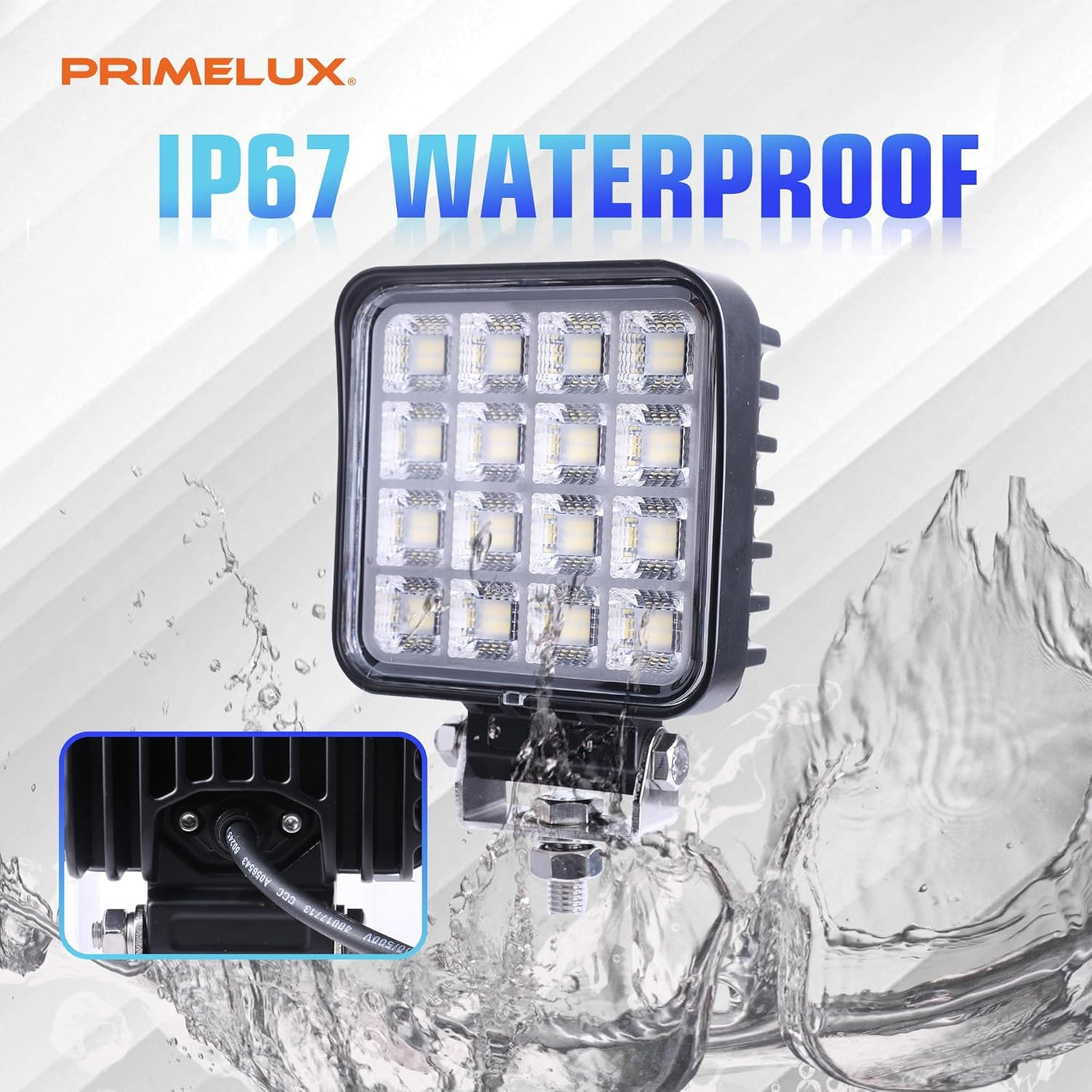

IP67 Waterproof Rating
This LED driving Light uses a waterproof die-casting aluminum alloy shell and advanced sealing technology, which solves most of the easy water problems encountered in use. The rustproof and shockproof function protects the 12v led light from rain, wind, and sand, making the driver safer during driving.

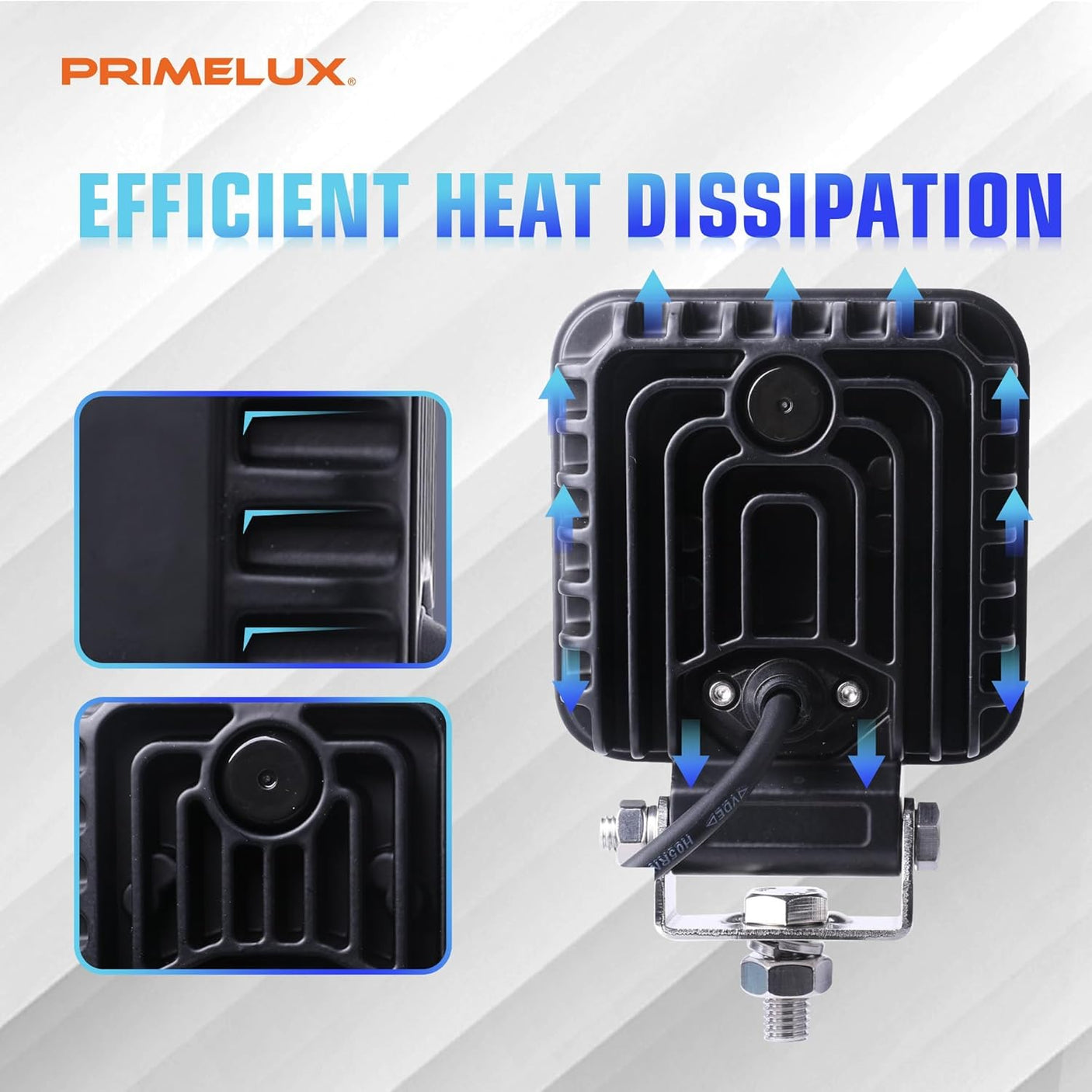

Fast Heat Dissipation
Using a die-cast All-aluminum radiator, and a vertical cooling fin on the back for maximum heat dispersion and better protect the led work lights for truck. led off road lights suitable for Tractors, Trucks, Boats, snowblowers, lawnmowers, forklifts, Construction and Mining Excavators, Project Vehicles, Wheel Loaders, heavy equipment, etc.
-
Model NamePX2096
-
Number of Items2
-
Specs forSingle Item
-
LED Chips96 x 1W OSRAM LED
-
Operating Voltage10-30V DC (12/24V DC)
-
Actual Power69.6W
-
Current Draw5.8A@12V, 2.9A@24V
-
Beam PatternFlood Beam
-
Effective Lumen6334lm
-
Emitting ColorWhite
-
Color Temperature5700K
-
CRI80
-
Cable2-Core Sheathed Cable
-
ConnectorNo Connector
-
PigtailNo Pigtail
-
Housing MaterialHigh Pressure Die-Cast Aluminium Alloy
-
Housing ColorBlack
-
Lens MaterialVirtually Unbreakable & UV-Resistant Polycarbonate Lens
-
Lens ColorClear
-
Bracket MaterialStainless Steel 304
-
Bracket ColorSilvery-gray
-
Mounting TypePedestal Mount
-
Operating Temperature-30℃ ~ +65℃ (-22°F ~ +149°F)
-

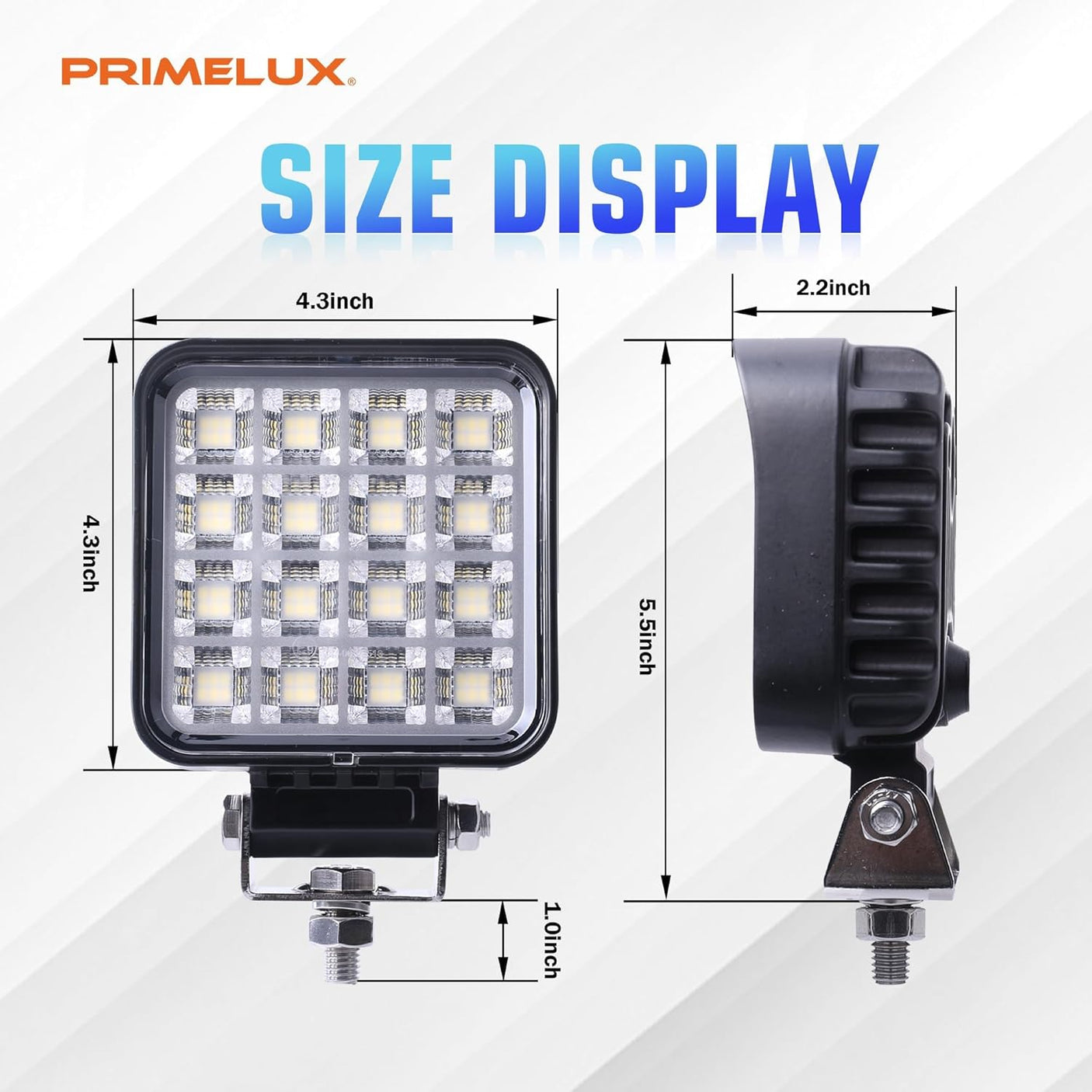

Dimensions (LxWxH)4.3" x 2.2" x 4.3"
-
Height Including Bracket5.5"
-
Ingress ProtectionIP68, IP69K
-
EMCECE R10, EN55015
-
ComplianceCE, RoHS, ECE R10

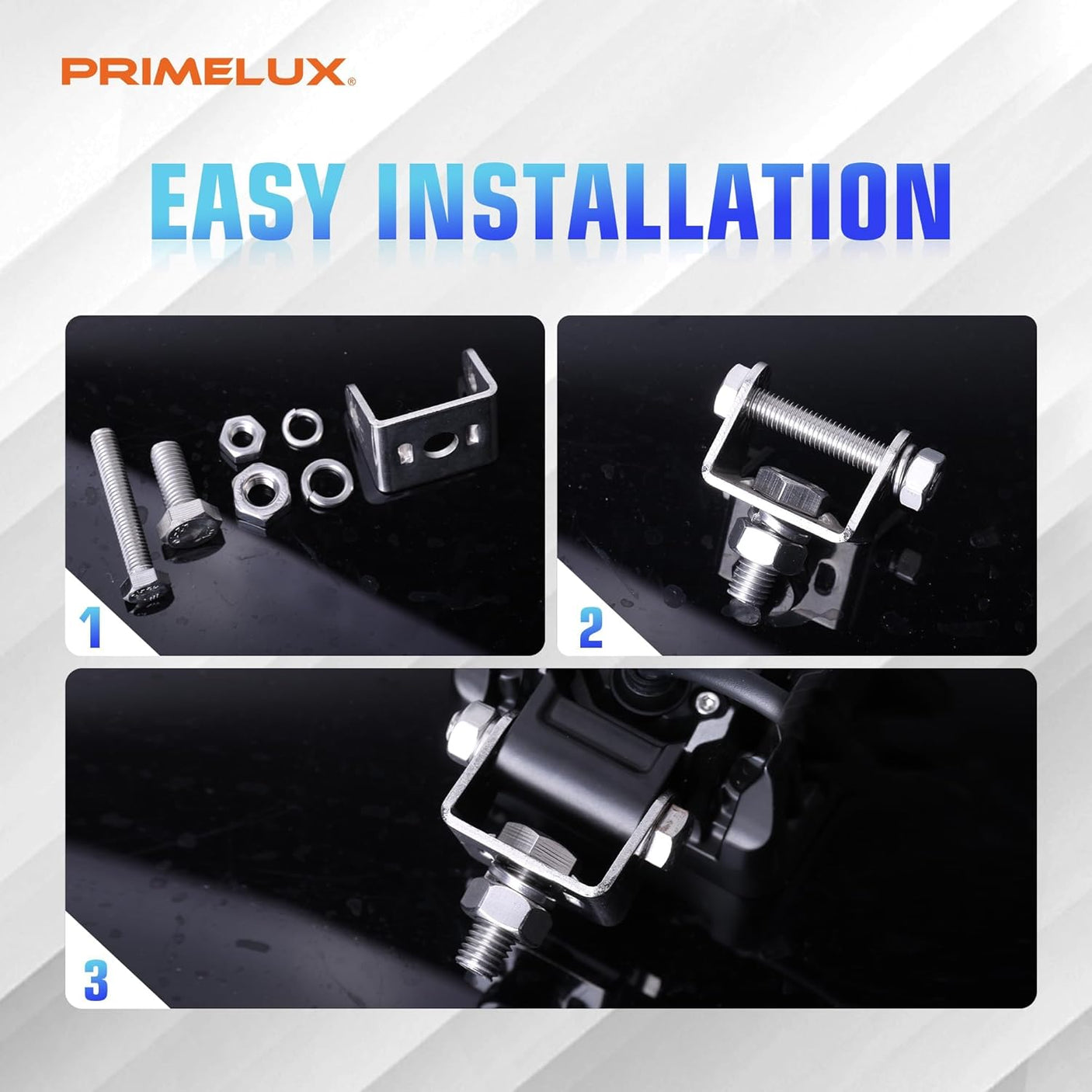

- 2 x Primelux LED work lights
- Mounting bottom brackets
- Mounting bolts & nuts
Using these as ditch lights on my RAM 2500. They provide a very nice, uniform flood light beam pattern. These do a very good job of illuminating the sides of the road. Seems like a quality built light and hopefully they last a long time.
